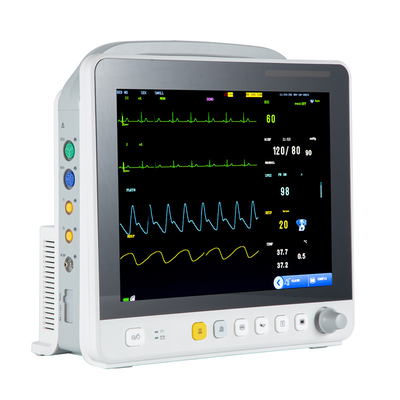

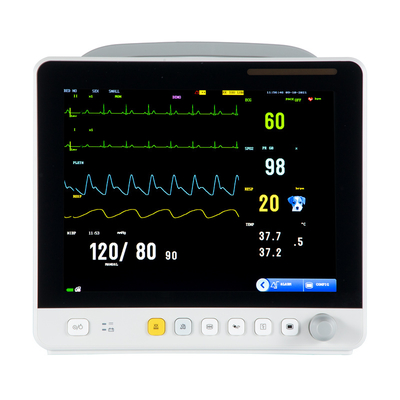

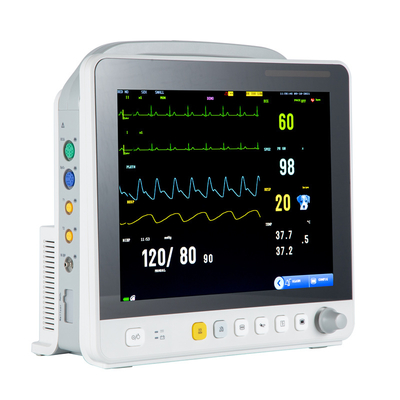

Name: Yonker Vet Monitor Touch Screen ECTO2 Multiparameter Monitor Cardiac Monitor Bulit-in Printer
Brand: Xuzhou Yongkang Electronic Science Technology Co., Ltd.
SKU: YK-vet
Availability: InStock

Home Products Veterinary Instrument

Yonker Vet Monitor Touch Screen ECTO2 Multiparameter Monitor Cardiac Monitor Bulit-in Printer

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yonker
Model Number:	YK-vet

Contact Now

Detailed Product Description

Display Size:	12.1 Inch	Optional Parameter:	ETCO2, IBP,BIS,CO Etc
Properties:	Diagnosis & Injection, Cardiac Monitoring	Parameter:	Spo2,nibp,Resp,ECG,temp, PR
Size:	303mm160mm287mm	Shelf Life:	5 Years
After-sale Service:	Online Technical Support	Warranty:	1 Year
Working Temperature Environment:	0 - 40 ℃

Intended use:

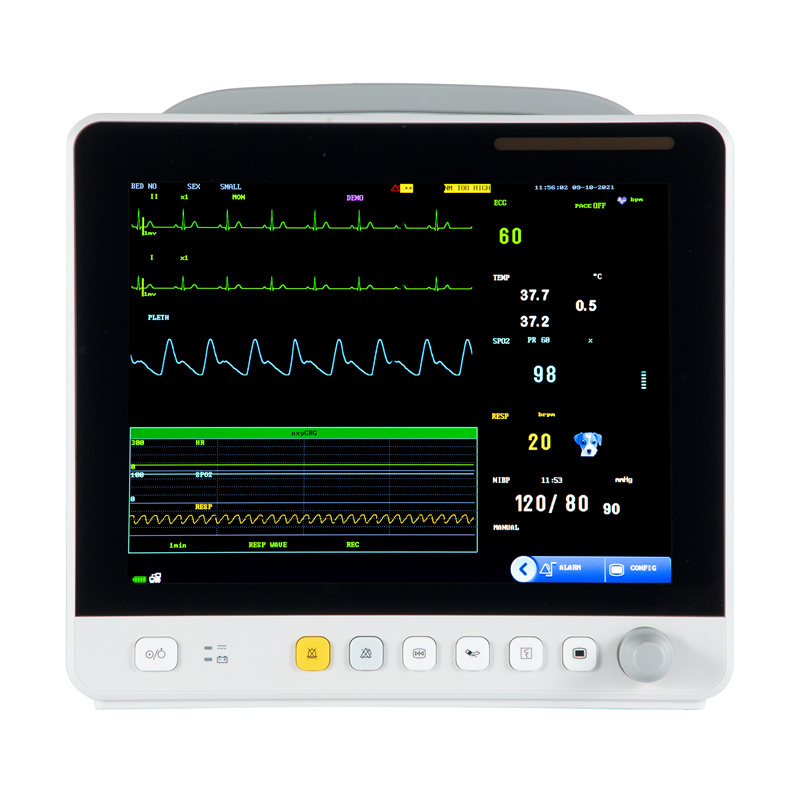

12.1-inch high-resolution color TET LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour working capability. Wireless central monitoring system applicable

Size: 12 * 11.4 * 6.4 inch Weight: 5kg Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer Package Include: 1 x device 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1 x Temperature probe (for Temperature)

ECG
Input	3/5 wire ECG cable
Lead section	I II III aVR, aVL, aVF, V
Gain selection	0.25, 0.5, 1, 2, Auto
Sweep speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range	15-30bpm
Calibration	±1mv
Accuracy	±1bpm or ±1% (select the bigger data)
NIBP
Test method	Oscillometer
Measurement type	Systolic Diastolic Mean
Measurement parameter	Automatic, Continuous measurement
Measurement method Manual	mmHg or ±2%
SPO2
Display Type	Waveform, Data
Measurement range	0-100%
Accuracy	±2% (between 70%-100%)
Pulse rate range	20-300bpm
Accuracy	±1bpm or ±2% (select the bigger data)
Resolution	1bpm
2-Temperature (Rectal & Surface)
Number of channels	2 channels
Measurement range	0-50℃
Accuracy	±0.1℃
Display	T1, T2, ☒T
Unit	ºC/ºF selection
Refresh cycle	1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type	0-150rpm
Accuracy	±1bm or ±5%, select the bigger data
Resolution	1rpm
Packing Information
Packing size	373728cm
N.W.	6kg
G.W.	7kg
