Name: Yonker Vital Sign Monitor for Veterinary Animal Hospital Clinic Equipment Vet Pet Medical Instrument Monitor
Brand: Xuzhou Yongkang Electronic Science Technology Co., Ltd.
SKU: VM12
Availability: InStock

Home Products Veterinary Instrument

Yonker Vital Sign Monitor for Veterinary Animal Hospital Clinic Equipment Vet Pet Medical Instrument Monitor

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	yonker
Model Number:	VM12

Contact Now

Detailed Product Description

Display Size:	12.1 Inch	Optional Parameter:	ETCO2, IBP,BIS,CO Etc
Properties:	Diagnosis & Injection, Obstetric Appliances	Parameter:	Spo2,nibp,Resp,ECG,temp, PR
Product Name:	Veterinary Monitor	Size:	303mm160mm287mm
Shelf Life:	5 Years	After-sale Service:	Online Technical Support
Warranty:	1 Year	Working Temperature Environment:	0 - 40 ℃

Intended use: vet monitor

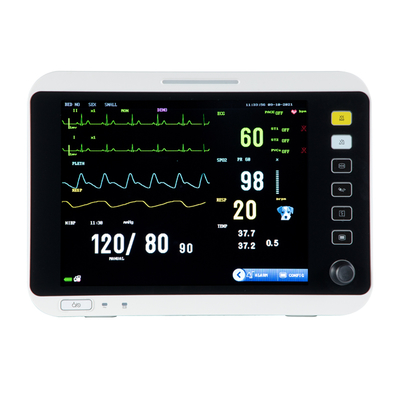

12.1-inch high-resolution color TET LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour

Parameters &Specification

Size: 12 * 11.4 * 6.4 inch Weight: 5kg Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

TECHNICAL SPECIFICATIONS
ECG			NIBP
Input	3/5 wire ECG cable	Test method	Oscillometer
Gain selection	0.25, 0.5, 1, 2，Auto	Measurement type	Systolic Diastolic Mean
Sweep speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s	Measurement parameter	Automatic, Continuous measurement
Heart rate range	15-30bpm	Measurement method Manual	mmHg or ±2%
Calibration	±1mv
Accuracy	±1bpm or ±1% (select the bigger data)
SPO2			2-Temperature (Rectal & Surface)
Display Type	Waveform, Data	Number of channels	2 channels
Measurement range	0-100%	Measurement range	0-50℃
Accuracy	±2% (between 70%-100%)	Accuracy	±0.1℃
Pulse rate range	20-300bpm	Display	T1, T2, ☒T
Accuracy	±1bpm or ±2% (select the bigger data)	Unit	ºC/ºF selection
Resolution	1bpm	Refresh cycle	1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type	0-150rpm
Accuracy	±1bm or ±5%, select the bigger data
Resolution	1rpm
Standard accessories
NIBP cuff & tube	ECG cable & electrodes	SpO2 sensor	TEMP probe
Lithium-ion battery	Power cable	Operator’s manual
Optional accessories
IBP	CO2	Nellcor SpO2	Printer

Main Product

Company Profile

Exhibition

Certifications

Product Deliver

Customer Reviews

More details about delivery cost, express company,wholesale price ,Clike here contact us

FAQ

Q:Are you a factory?
A:Yes, we are,welcome to visit our company and factory.We produce and design medical & homecare series more than 16 years.

Q:Can you offer OEM & ODM service?
A:Yes,OEM and ODM are available for us.We have an experienced R&D team to develop and design new products.

Q:Do you have a certificate?
A:Yes, we have ISO13485, ISO9001,TUV CE,FSC ect.

Q:What can you buy from us?
A:Patient Monitor,ECG,Syringe Pump,Pulse Oximeter,Blood Pressure Monitor,Thermometer,UV Radiation Treatment System,Fetal Doppler

Q:Will you help me register the products in my country ?
A:Sure, we will provide all you documents that you need for register.
